High Aluminum Zirconium HAZ 1600 Ceramic Fiber Blanket for High Temperature Industrial Furnace
Introduction of HAZ 1600 Ceramic Fiber Balnket:
HAZ 1600 Ceramic fiber blanket is made of high quality raw materials such as flint clay, formed by high temperature wire spinning and needling, combined with inorganic materials, counted by electron, and completed by assembly line.
Feature of HAZ 1600 Ceramic Fiber Blanket:
1.Low thermal conductivity and low heat storage
2.Good thermal stability and thermal shock resistance
3.High tensile strength
4.Good thermal insulation, fire resistant and sound absorption
Application of HAZ 1600 Ceramic Fiber Blanket:
1. Industrial furnace, heating devices, high temperature pipe wall linings
2. High temperature boilers, steam turbine and Nuclear power thermal insulation
3. Chemical industrial high-temperature reaction equipment and heating equipment wall linings
4. High building fireproof and thermal insulation
5. Furnace door and roof thermal insulation
6. High temperature filter materials

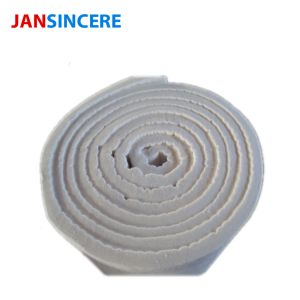

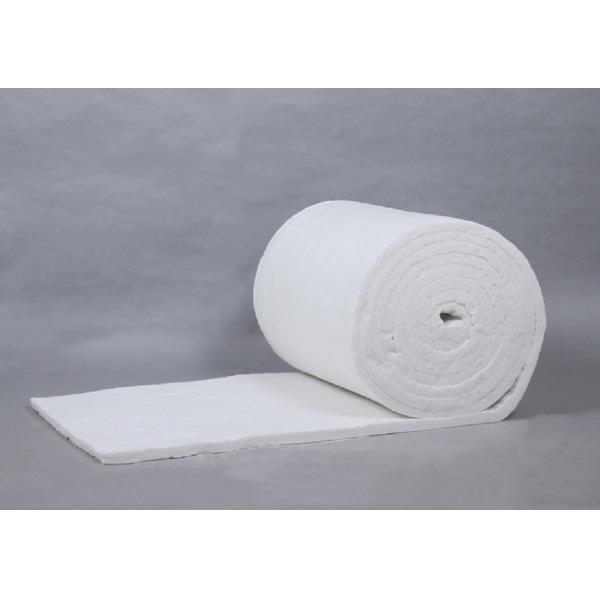

Photos of HAZ 1600 Ceramic Fiber Blanket:
Technical Index of HAZ 1600 ceramic Fiber Blanket:
| Item | COM | STD | HP | HAZ | HZ |
| Classification temperature (°C) | 1100 | 1260 | 1260 | 1360 | 1450 |
| Working Temperature (°C) | 950 | 1050 | 1100 | 1260 | 1350 |
| Color | White | Super White | Super White | Super White | Super White |
| Bulk Density (kg/m3) | 96/128/160 | 96/128/160 | 96/128/160 | 128/160 | 128/160 |
| Permanent Linear Change (24H) (%) | -4 (1000°C) | -3 (1000°C) | -3 (1100°C) | -3 (1250°C) | -3 (1350°C) |
| Thermal Conductivity (w/m.k) | 0.09 (400°C) 0.16 (800°C) | 0.09 (400°C) 0.16 (800°C) | 0.09 (400°C) 0.16 (800°C) 0.20 (1000°C) | 0.12 (600°C) 0.20 (1000°C) | 0.16 (800°C) 0.20 (1000°C) |
| Bending Strength (MPa) | 0.04 | 0.04 | 0.04 | 0.05 | 0.06 |
| Chemical Composition (%) | Al2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
| Al2O3+SiO2 | 96 | 97 | 99 | 99 | - |
| Al2O3+SiO2+ZrO2 | - | - | - | - | 99 |
| ZrO2 | - | - | - | 5-7 | 15-17 |
| Fe2O3 | ≤1.2 | ≤1.0 | ≤0.2 | ≤0.2 | ≤0.2 |
| Na2O+K2O | ≤0.5 | ≤0.5 | ≤0.2 | ≤0.2 | ≤0.2 |
| Size (mm) | General Dimension: 15000*610/1220*10, 14400*610/1220*12.5, 7200*610/1220*20, 7200*610/1220*25, 5000*610/1220*30, 4500*610/1220*40, 3600*610/1220*50 Other sizes can be customized. |
Package:
